Features
Rpc profile, superior power capacity with a more compact drive system

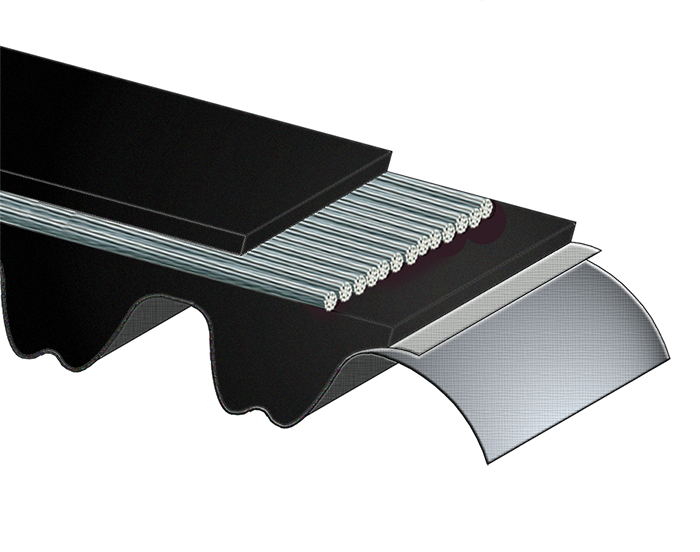

MAIN COMPONENTS
Features
Rpc profile, superior power capacity with a more compact drive system

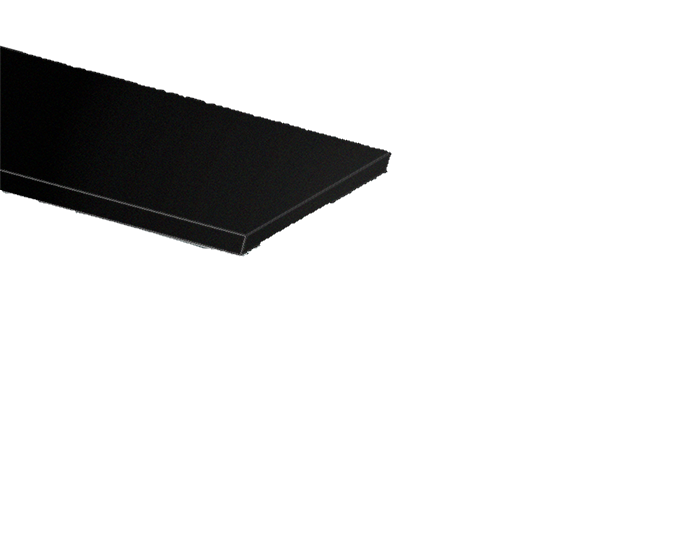

BELT BODY
HNBR Elastomer uniquely cross-linked to increase tooth rigidity & durability.
- Superior resistance to flex fatigue
- Expanded range of working temperatures from -40°C (-40°F) to +120°C (+248°F) and ability to withstand peaks up to +140°C (+284°F)
- Highly resistant to mineral oils and abrasion

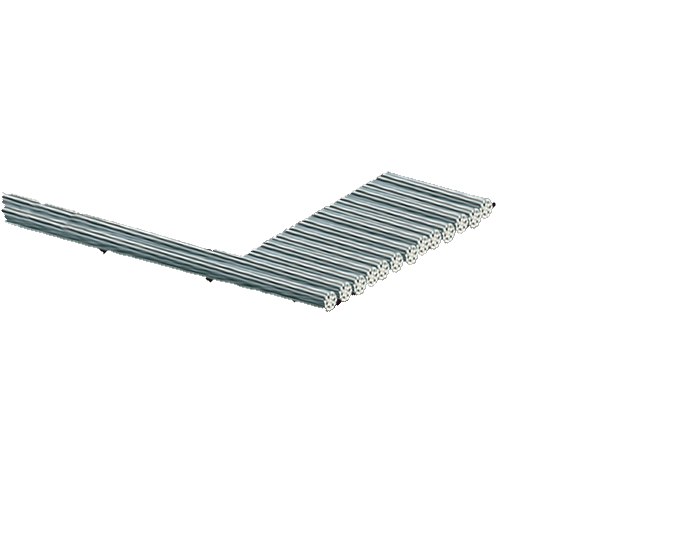

CORDS
100% carbon, the cord provides extreme dimensional stability (no stretch) under static and dynamic operational loads.
- Maintenance-free, no need to re-tension
- Dual spiral S & Z twist cord provides neutral tracking
- Extremely accurate tooth meshing resulting in the reduction of abrasion, vibrations, & noise

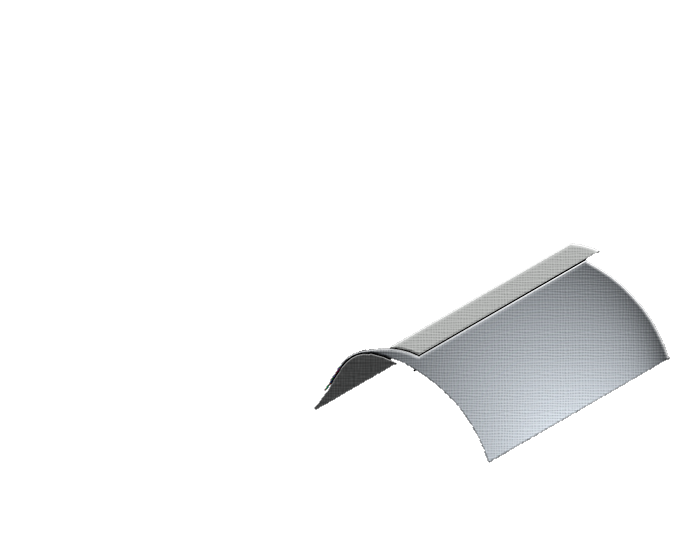

TOOTH FACING FABRIC
High-performing special fabric bonded to the tooth surface.
- Improved torque carrying capacity and tooth shear resistance
- Special film provides self-lubricating properties
- Long lasting durability and antistatic properties
- Low friction, increased drive efficiency with less sprocket wear
